Product Description

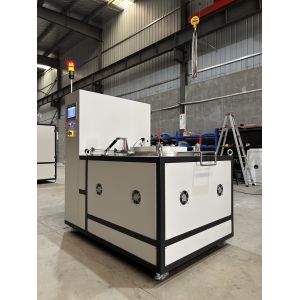

1,The HWF6630-10 type tank vapor deposition furnace is suitable for medium-temperature heat treatment of electronic products. It is mainly used for vapor phase reaction processes of related materials in nitrogen, acetylene, and hydrogen atmospheres, and can also be used for sintering processes of related materials under protective atmospheres. The furnace is fully equipped with a real-time computer monitoring system, making it particularly suitable for material process testing requirements in research institutes.

Detailed Photos

Product Parameters

2.Model: HWF6630-10
Operating Temperature: 750°C
Maximum Temperature: 1000°C
Effective Chamber Size: Φ600×300mm (D×H)
Heating Element: Internal heating with stainless steel heating tubes
Processing Atmosphere: Nitrogen, Hydrogen, Acetylene
Heating Method: FEC ceramic fiber heater
Temperature Control Points: 2
Temperature Stability: ±1°C, with PID parameter self-tuning function
Control Method: Touch screen + PLC centralized control
Alarm Protection: Audible and visual alarms for overtemperature and thermocouple breakage, with overtemperature alarm power-off protection
Heating Rate: ≤6°C/min
Heating Power: 16kW
Power Requirements: Capacity greater than 22KVA, 3-phase 5-wire, voltage 220/380V, frequency 50Hz
External Dimensions (Reference): 1185×1745×1780mm (W×H×D)

3. Delivery List

Table 1 Delivery list
	Item	Note	Qty.
Basic Components	Furnace		1 UNIT
	inspection certificate	Certificate of major outsourced components	1 SET
	Control cabinet		1 UNIT
	Technical Documents	Instructions, technical documents of the major outsourced parts, etc	1 SET
Key Components	Temperature control module	Yamatake and other similar imported brands	1 SET
	Touchscreen	10 inches	1 SET
	Mass flow meter	Nitrogen 200L/min, others 50L/min	3 PCS
	FEC heater	Ceramic fiber embedded with spiral resistance wire	1 SET
	Furnace liner	SUS310S	1 PCS
Spare Parts	SSR		1 PC
	Sealing strip		1 PCS

Certifications

Packaging & Shipping

Company Profile

Hefei Chitherm Equipment Co., Ltd. is an advanced equipment supplier specializing in the research and development, design, manufacturing, sales, maintenance, and service of high-, medium-, and low-temperature industrial furnaces and laboratory furnaces. Its product range encompasses bell furnaces, box furnaces, hot air furnaces, vacuum furnaces, tube furnaces, mesh belt furnaces, bogie hearth furnaces, rotary furnaces, roller hearth furnaces, and pusher furnaces, which are extensively applied in fields such as advanced ceramics, electronic components, thick-film circuits, additive manufacturing, powder metallurgy, new energy, and photovoltaics. These furnaces are suitable for thermal treatment processes of materials including ITO targets, MLCC/HTCC/LTCC, ceramic filters, magnetic materials, CIM/MIM, and lithium battery cathodes and anodes, as well as various other new material processes such as pre-sintering, dewaxing, degreasing, sintering, drying, heat treatment, curing, and ceramization.

Our Advantages

4. Facility Requirements
1. Environmental Conditions: Temperature 0~40°C, humidity ≤80% RH, no corrosive gases, no strong airflow disturbances;
2. Floor Requirements: Level, no significant vibration, load-bearing capacity >500 kg/m²;
3. Power Requirements: Capacity greater than 22 kVA, 3-phase 5-wire, voltage 220/380 V, frequency 50 Hz. Live wires: yellow, green, red; neutral wire: blue; ground wire: yellow-green;
4. Installation Space: 1500 mm × 1500 mm × 3000 mm (D × W × H), installation area greater than 2.5 m².
