1.Application field
It is suitable for medium-temperature heat treatment of electronic
products, including nitrogen/hydrogen atmosphere heat treatment for
electronic ceramics, media, and conductors, etc.
It is suitable for medium-tem temperature heat treatment of
electronic products, including medium-temperature heat treatment
for electronic ceramics, media and conductors in nitrogen/hydrogen
atmosphere, etc.

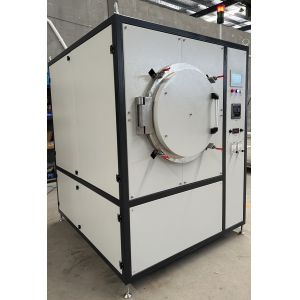

2. Technical Specification:Model Number: HWF100-10NH
The dimensions of the tank are 630 × 900 (d × D).
The effective dimensions of the furnace chamber are 400 × 400 × 650
mm (W × H × D).
Maximum operating temperature: 1000°C
Long-term working temperature: 900°C
Heating method: FEC ceramic fiber heater
Refractory thermal insulation, alumina products
Cooling method: in-furnace cooling
Number of temperature control points: Three independent temperature
control points at the front, middle, and rear.
Temperature control instrument: Japanese YAMATA intelligent
temperature controller
Number of program segments: 9
Operating power supply: 380±10%V power supply, 3-phase 5-wire, 50Hz
Maximum power: 30kW
Thermal insulation power: ≤15kW
3. Delivery List
| Table 1 Delivery list |
| Item | Note | Qty. |
| Basic Components | Furnace |
| 1 SET |
| inspection certificate | Certificate of major outsourced components | 1 SET |
| Technical Documents | Instructions, technical documents of the major outsourced parts,
etc | 1 SET |
| Key Components | micro-oxygen analyzer |
| 1 SET |
| Temperature Controller |
| 1 SET |
| Thermocouple | Type K | 3 PCs |
| Spare Parts | SSR |
| 1 PC |
4. Facility Requirements- Environmental Conditions: temp.: 0~40ºC, humidity ≤ 80%RH, no corrosive gas, no strong airflow disturbance
- N2 Conditions: 99.999% purity, working pressure: 0.2-0.4MPa, Max gas consumption 2-6 m3/h
- H2 Conditions: working pressure: 0.2-0.4MPa, Max gas consumption 0.2-0.6m3/h
- Water Conditions: clean, no corrosive water, working pressure
0.1-0.3MPa, 1-3L/min
- Ventilation System: non-contact access to the user pumping system,
pumping capacity is greater than 10m3/h
- Ground Requirements: horizontal, no obvious vibration,
load-bearing> 500 kg/m2;
- Power Condition(TBD): capacity > 40kVA, 3-phases 5-lines, voltage 220/380V, frequency 50Hz. Fire line:
yellow, green, red, Zero line: blue, Ground line: yellow-green;
- Installation Site: 3200mm×2500mm×3000mm(D×W×H), with an installation area greater than 8m2.
