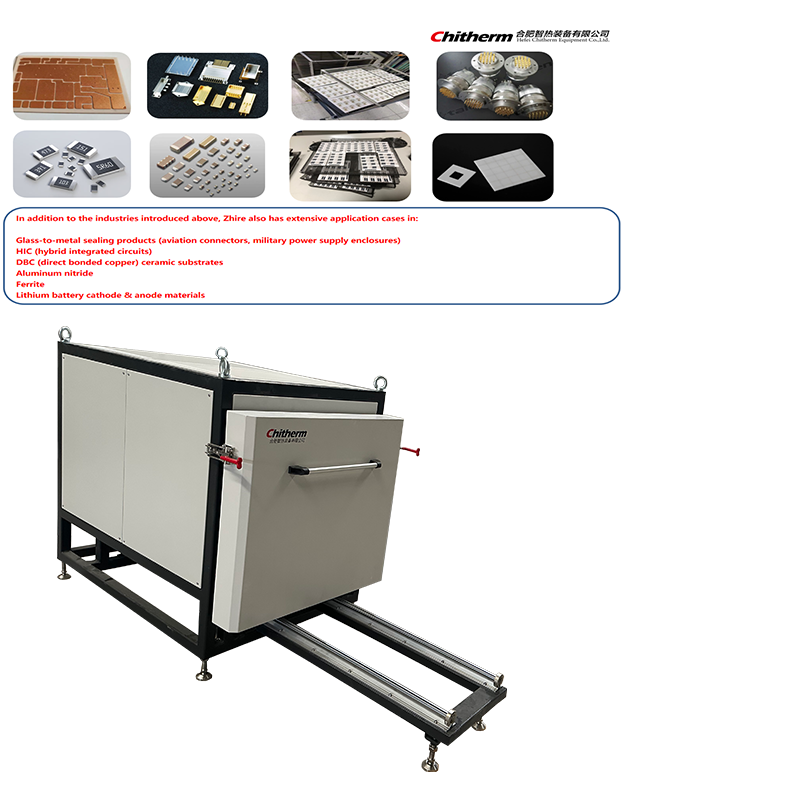

I. Main Parameters of Sintering Furnace
Basic Information
Model: HBF105-14
Application: Laboratory and small-scale production
Refractory Properties: Acid and alkali resistant, excellent
temperature uniformity in the furnace chamber
Temperature Performance
Operating Temperature: 1300°C (standard)
Maximum Test Temperature: 1500°C (limit)
Temperature Stability: ±1°C
Furnace Chamber Temperature Uniformity: ±5°C
Furnace Chamber & Heating System
Effective Dimensions: 400×330×800mm (W×H×D)
Burning Plate Material: Corundum mullite
Heating Element: Silicon molybdenum rods (high-temperature
resistant, oxidation-proof)
Safety & Protection
Alarm Functions: Over-temperature, thermocouple break, low-pressure
audible and visual alarms
Interlock Design: Heating and furnace door switch linkage
(anti-misoperation)
Surface Temperature Rise: <35°C (safety protection)
Electrical & Mechanical Parameters
Power: Maximum heating power 23kW
Power Supply: Three-phase 380VAC, 50Hz, 30kVA
Weight: 500kg
Installation Dimensions: 800×900×1200mm (D×W×H)
II. Temperature Control Cabinet Configuration
Control Channels
Total Channels: 5+2 (5 channels for sintering furnace, 2 spare
channels)
Instrumentation & Control
Temperature Control Instrument: Eurotherm 3504 or imported from
Japan (high-precision intelligent regulation)
Number of Instruments: 7 per cabinet (corresponding to 5+2
channels)
Control Method: Power and voltage regulation (precise temperature
control)
Safety Features
Alarm Protection: PID auto-tuning, high-temperature upper limit
alarm, thermocouple failure indication
Over-temperature Response: Audible and visual alarm + immediate
heating cutoff
Physical Parameters
Dimensions: 800×1850×500mm (W×H×D)
Color: Light gray
III. Core Advantages
High Uniformity: ±5°C temperature field uniformity suitable for
precision sintering processes.
Multiple Protections: Interlock design + triple alarms
(over-temperature, thermocouple break, pressure) ensure safety.
Flexible Expansion: Spare control channels support future upgrades.
| Item | pecifications | Quantity | Notes |
| Kiln Main Unit | Primary heating system | 1 set | Core equipment for thermal process
|
| Setter Plate | Material: Corundum-Mullite | 1 set | High-temperature resistant carrier |
- The equipment must be installed indoors, with an ambient
temperature range of -10℃ to 45℃. The indoor environment must be
free of flammable gases, corrosive gases, and vapors.
- The equipment requires a floor space of no less than 4 square
meters, with a working area length of at least 2 meters, width of
at least 2 meters, and height of no less than 3 meters. The
foundation must be sturdy and level, and the furnace weighs
approximately 400kg.
- The power supply for this furnace must be a three-phase five-wire
AC power line, with a voltage of 380±10% V and a frequency of 50±2%
Hz. This power line is dedicated, and high-power conversion
equipment such as welding machines, electric furnaces, and
metal-cutting machine tools should not be connected to this
distribution.
- The equipment must be reliably grounded.
